Aluminum Raised Floor System
Huateng aluminum raised floor is a premium flooring solution uniquely designed for high-demand environments. Manufactured from high-grade aluminum alloy through precision casting and CNC machining, our aluminium floor systems deliver unbeatable stability and load-bearing performance even under extremely heavy loads.
We offer a complete range of aluminum floor products including aluminum solid panel, aluminum perforated panel and aluminum grating panel. Our systems are engineered to meet the strict requirements of both industrial facilities and high-end commercial venues, making them the ideal choice for clean room floor applications, data centers, semiconductor manufacturing plants and hospital operating rooms.
With a sleek, modern design that seamlessly integrates with any interior decor, our aluminum raised floor not only provides exceptional functionality but also adds aesthetic value to your space. All products undergo rigorous quality testing and comply with international industry standards.
Product Advantages
Characteristics
● Precise manufacturing allows for excellent mobility and interchanging of panels (±0.1mm dimensional tolerance)
● Class A1 building material (Non-combustible) - meets the highest fire safety standards
● Wide variety of finishing materials to match different project requirements
● Unique manufacturing process provides high-quality yet low-cost components
● High load-bearing capacity with low deflection - up to 1500kg concentrated load
● Easy-to-use material for subsequent cut-outs and on-site modifications
● Long life cycle for economical usage - over 30 years service life
● Excellent electrical conductivity - effectively dissipates static electricity to protect sensitive equipment
● Corrosion and moisture resistant - no rust, no deformation even in high humidity environments
Covering Finishes
● PVC (Conductive & Non-conductive)
● HPL (High Pressure Laminate)
● Epoxy coating
● Ni-Cr plating
Technical Specifications
Below are the standard specifications for our aluminum raised floor systems. Custom sizes and load ratings are available upon request.
| Model | Size | Uniform Load (kN/㎡) | Concentrated Load (0.1㎡/2.5mm deflection) | Ultimate Load (kN) |
|---|
| FA500 | 600×600mm | 14.70 | 4.90kN (500kg) | 9.8 |
| FA700 | 600×600mm | 20.58 | 6.86kN (700kg) | 13.72 |
| FA1000 | 600×600mm | 29.40 | 9.80kN (1000kg) | 19.60 |
| FA1500 | 600×600mm | 44.10 | 14.70kN (1500kg) | 29.40 |
| FA2000 | 600×600mm | 58.80 | 19.60kN (2000kg) | 39.20 |
* 610×610mm (24 inch) and other custom sizes are available for aluminum solid panel and perforated panels.
Application Scenarios
Our aluminum raised floor systems are widely used in environments that require high cleanliness, fire safety and load-bearing capacity:
Clean Room Floor: Semiconductor manufacturing plants, pharmaceutical factories, biotech laboratories and hospital operating rooms
Data Centers & Server Rooms: High-density server areas with heavy equipment loads
Electronic Production Facilities: SMT workshops, PCB assembly lines and precision instrument rooms
Industrial Plants: Heavy machinery workshops, power plants and chemical processing facilities
High-end Commercial Spaces: Luxury hotels, exhibition centers and corporate headquarters
Healthcare Facilities: Operating theaters, ICU rooms and medical laboratories
Product Structure & Details
Understructure & Panel Design

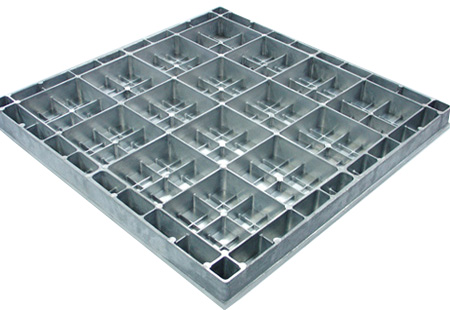

Our aluminium floor panels are manufactured through a precision die-casting process using high-purity aluminum alloy. The unique grid structure effectively distributes weight across the entire panel surface, providing exceptional load-bearing capacity while maintaining a lightweight design.
The aluminum solid panel features a smooth, non-porous surface that prevents dust accumulation and bacterial growth, making it ideal for clean room floor applications. All panels are machined to exact tolerances, ensuring perfect alignment and interchangeability with other panels in the system.
Support System
The aluminum raised floor system is supported by adjustable aluminum pedestals and aluminum stringers, providing a stable and level platform. The pedestals feature a threaded design that allows for height adjustment from 50mm to 1500mm, accommodating various cable management and underfloor ventilation requirements.
Ventilation Options
We offer a complete range of aluminum ventilation panels that are fully interchangeable with our aluminum solid panel:
Aluminum Perforated Panel: Ventilation rates from 20% to 55%
Aluminum Grating Panel: High ventilation rates up to 75%
Die-cast Aluminum Perforated Panel: For heavy-duty ventilation applications
Adjustable damper options available for precise airflow control
Why Choose Huateng Aluminum Raised Floor
30+ Years of Experience: Established in 1993, we are a leading manufacturer of aluminum raised floor systems with over 30 years of industry expertise
Self-owned Production Base: 80,000㎡ factory with fully automated production lines, ensuring consistent quality and fast delivery
International Certifications: ISO9001, ISO14001, ISO45001 certified, products pass SGS, CE and PSB testing
Global Project Experience: Our aluminium floor systems have been installed in over 50 countries and regions worldwide
Customization Service: We provide custom sizes, finishes and load ratings to meet your specific project requirements
Comprehensive After-sales Support: 7×24 technical support, free sample service and professional installation guidance
Large Production Capacity: 3000㎡ daily production capacity, capable of handling large-scale projects
Frequently Asked Questions
Q1: What is the difference between aluminum raised floor and steel raised floor?
A: Aluminum raised floor is lighter, corrosion-resistant and non-combustible, making it the preferred choice for clean room floor and humid environments. Steel raised floor is more cost-effective for general office applications. Our aluminum solid panel also offers superior electrical conductivity and longer service life compared to steel panels.
Q2: Can your aluminum floor be used in Class 100 clean rooms?
A: Yes, our clean room floor systems are specially designed to meet the strict requirements of Class 100 to Class 10000 clean rooms. The aluminum solid panel has a smooth, non-porous surface that prevents dust accumulation and is easy to clean and disinfect.
Q3: Do you offer custom sizes for aluminum raised floor panels?
A: Absolutely. In addition to standard 600×600mm and 610×610mm sizes, we can manufacture custom-sized aluminum solid panel and perforated panels to fit your specific project needs.
Q4: What is the maximum installation height of your aluminum floor system?
A: Our adjustable aluminum pedestals support installation heights from 50mm to 1500mm. For heights exceeding 1500mm, we can provide reinforced pedestal systems with bracing for added stability.
Q5: How long is the service life of Huateng aluminum raised floor?
A: With proper installation and maintenance, our aluminium floor systems have a service life of over 30 years. The corrosion-resistant aluminum material ensures long-term performance even in harsh industrial environments.
Q6: Do you provide installation services for clean room floor projects?
A: We offer professional installation guidance and technical support worldwide. For large-scale clean room floor projects, we can send experienced engineers to supervise the installation process and ensure compliance with industry standards.
